TOKO ER5356 welding wire is a type of welding wire used for welding aluminum alloys. It is a solid, non-flux-cored wire that is typically used for gas metal arc welding (GMAW), also known as metal inert gas (MIG) welding.

ER5356 wire is made from an aluminum-magnesium alloy (5% Mg) that provides good corrosion resistance, particularly in saltwater environments. It is commonly used for welding 5000-series aluminum alloys, which are known for their good workability, weldability, and corrosion resistance.

ER5356 wire is compatible with a wide range of shielding gases, including argon, helium, and argon-helium mixtures. The selection of the appropriate gas depends on the specific welding application and the desired weld quality.

This welding wire is suitable for both indoor and outdoor applications, and it can be used for both structural and decorative welding tasks. However, it is important to note that the welding process requires skill and expertise to achieve good results.

Overall, ER5356 welding wire is a high-quality, versatile product that is widely used in the welding industry for joining aluminum alloys.

ER5356 or ER4043: Which one is suitable for you?

1. ER4043 is a Silicon-Aluminum base wire while ER5356 is Magnesium-Aluminum base wire.

2. ER4043 has a low melting point but higher molten pool fluidity compared to ER5356 wire.

3. ER5356 welding wire is suitable for anodizing after welding however ER4043 does not suit after weld anodizing weld applications.

4. ER5356 is a magnesium-containing wire that has a higher weldability, higher welding strength and better ductility. It is best used for welding thicker sheets of aluminum.

Please note that the above information is for reference purposes only. For more detailed information, it is recommended to consult with professional welding technicians or refer to relevant literature.



ER5356 Welding Wire Composition

AWS Class ER5356 welding electrode is an aluminium magnesium welding wire with 5% magnesium and 0.8% manganese content. Its chemical composition makes it ideal for welding aluminium alloys 5083, 5086, 5154, 5454, and 5456. ER5356 is suitable for both MIG and TIG welding processes.

Si Fe Cu Mn Mg Cr Zn Ti Other AL
0.25 0.40 0.10 0.50-1.0 4.7-5.5 0.05-0.20 0.25 0.05-0.20 0.15 Remainder

ER5356 Coated Wire Mechanical Properties

AWS Class ER5356 alloy has excellent mechanical properties, including high flexibility, toughness, and strength. The welded joints using ER5356 have high fatigue strength and resist stress-cracking corrosion. ER5356 has an ultimate tensile strength of 41000 psi and yield strength of 31000 psi.

Conductivity: 29% IACS (-0)/27% IACS (-H18)
Tensile Strength, kpsi: 38
Color: White

The information contained or otherwise referenced herein is presented only as “typical” without guarantee or warranty, and TOKO Corporation expressly disclaims any liability incurred from any reliance thereon. Typical data and Test results for mechanical properties, deposit or electrode composition and other properties were obtained from a weld produced and tested according to prescribed standards, and should not be assumed to be the expected results in a particular application or weldment. Actual results will vary depending on many factors, including, but not limited to, weld procedure, plate chemistry and temperature, weldment design and fabrication methods. Users are cautioned to confirm by qualification testing, or other appropriate means, the suitability of any welding consumable and procedure before use in the intended application.

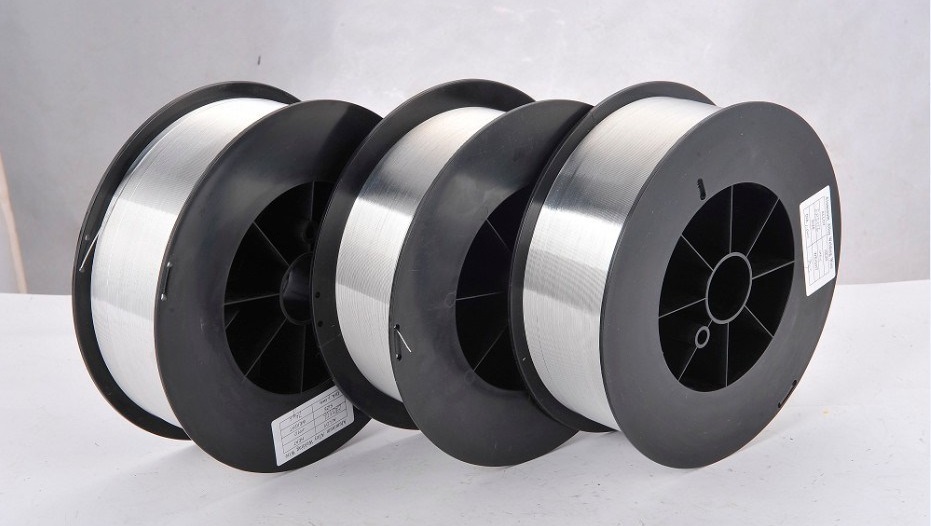

 TOKO Aluminum Welding Wire
